Description

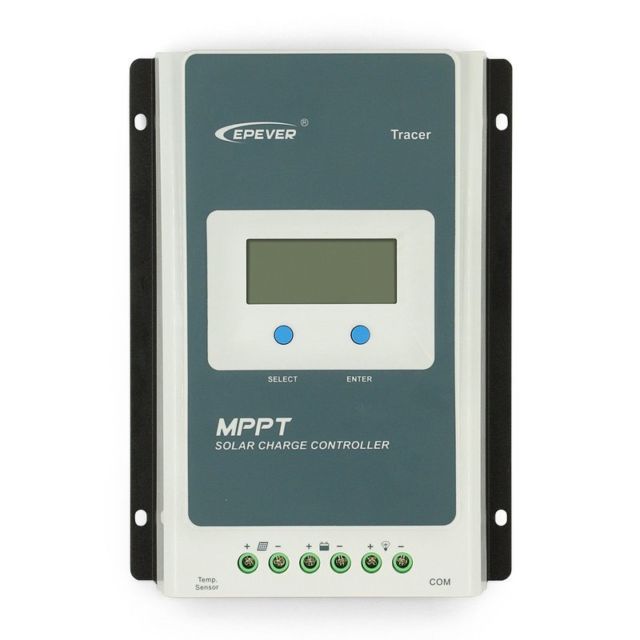

Epever’s newly upgraded Tracer AN series with common negative earth is a high quality economically priced proper MPPT controller which features up to 99% tracing efficiency.
The Tracer AN Series, MPPT charge controller with its 4-stage charging (Bulk, Absorption, Float and equalisation ), can substantially increase the life of your flooded, sealed, AGM, Gel and lithium-ion batteries.
This MPPT controller has built-in protection against reverse polarity, over-discharging, over-charing, reverse current and overload along with protecting batteries from being overcharged by the solar array.
The advanced hardware allows both the blacklist LCD screen and the MT-50 remote to display the working conditions of the system. In the event of a systems fault, it can self-diagnose itself with error codes. The user can view the codes on either screen.
The exterior of the unit is composed of die-cast aluminium for safe heat dissipation and general protection from wear and tear.
FEATURES
Blacklight display – Easy to read the LCD display
Compatible with lithium-ion batteries – Configures with Flooded, AGM, Gel and Lithium batteries
Auto-detect battery voltage 12V / 24V
Common Negative Earth
24 months warranty
Suitable for 4WD, Caravan, RV’s and permanent off-grid installations
Built-in safety features including over-voltage, overloading and back polarity.
OVERVIEW
Nominal System Voltage: 12V / 24V Auto-Detect
Maximum Solar Input Voltage: 100V
Maximum Amperage Output: 40A
Battery Type: Flooded AGM Gel Lithium
