Description

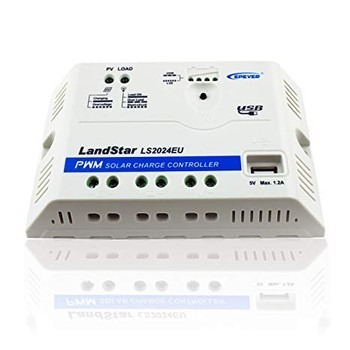

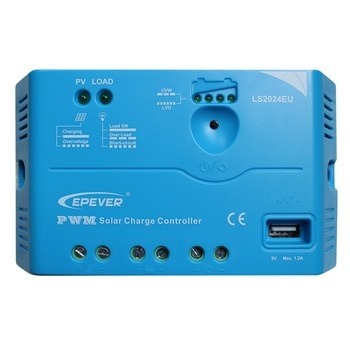

Epever’s LandStar EWU Series is easy to use PWM Solar Controller suitable for 12V and 24V panels and battery bank setups. The 3-stage intelligent PWM charge controller regulates the charge and ensures the maximum charging current is being delivered to your battery in all weather conditions while at the same time acting as a safety device by protecting your battery from overcharging.
Although they are not as efficient as their MPPT counterparts, they do work exceptionally well when the solar panel and battery bank voltages are similar, making them a more cost-effective, reliable solution.
FEATURES
3-stage intelligent PWM charging: Bulk, Boost/equalise, Float
Compact unit with USB outlets
Compatible with flooded, AGM, Gel batteries
Auto-detect battery voltage 12V 24V
Temperature compensation function
12 months warranty
Suitable for 4WD, caravan, RV’s and permanent off-grid installations
Built-in safety features including over-voltage, overloading and back polarity.
OVERVIEW
Nominal System Voltage: 12V / 24V Auto-Detect
Maximum Solar Input Voltage: 50V
Maximum Amperage Output: 20A
Battery Type: Flooded AGM Gel
.
