Description

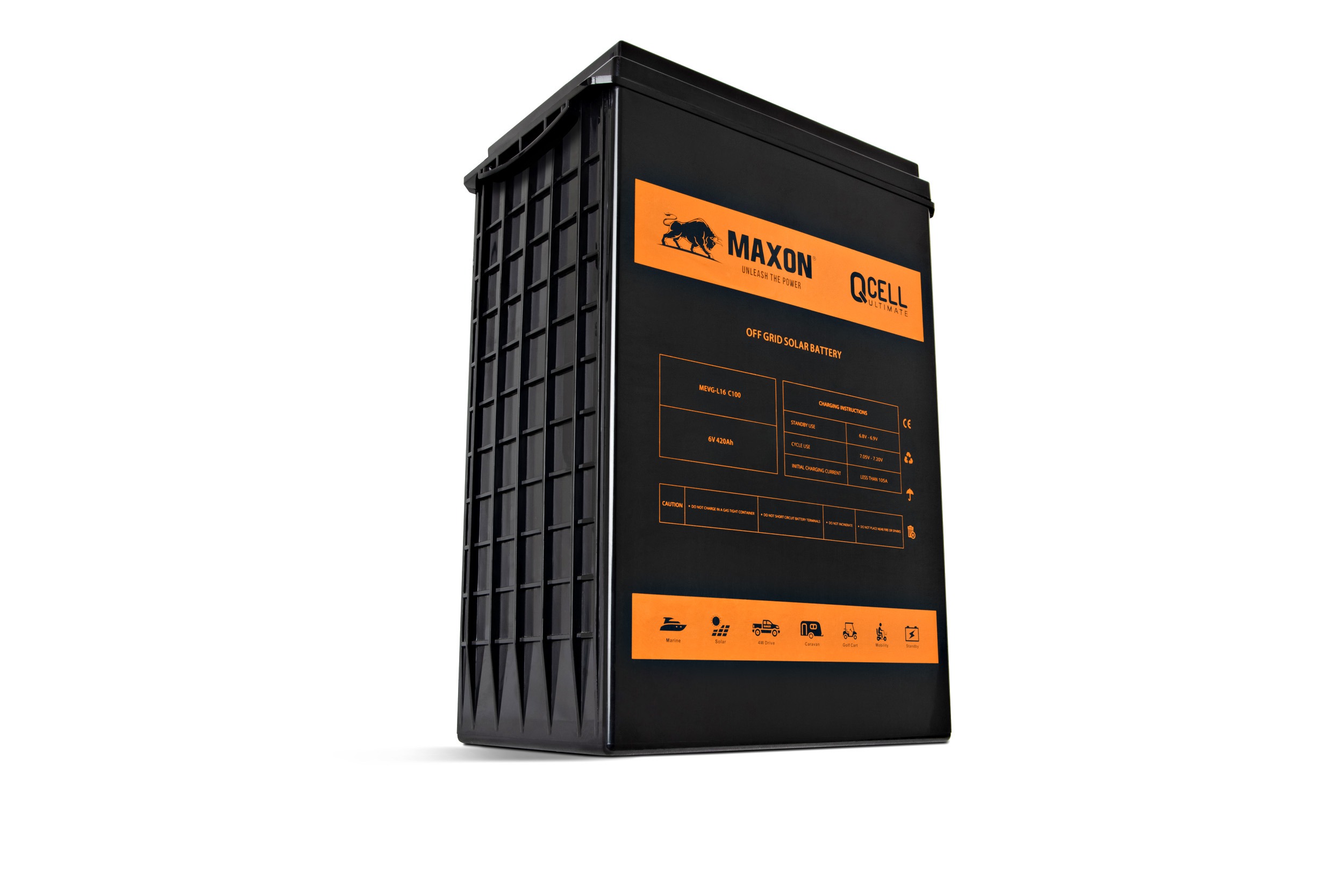

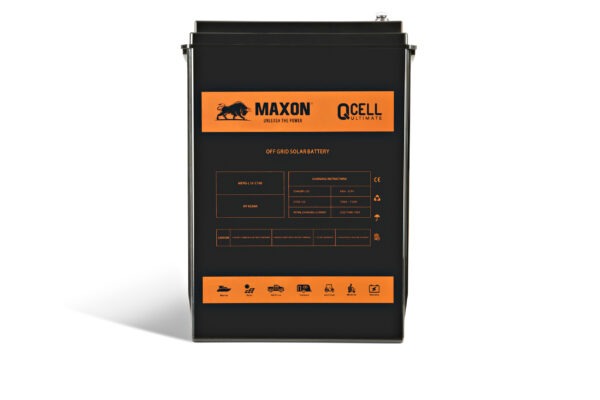

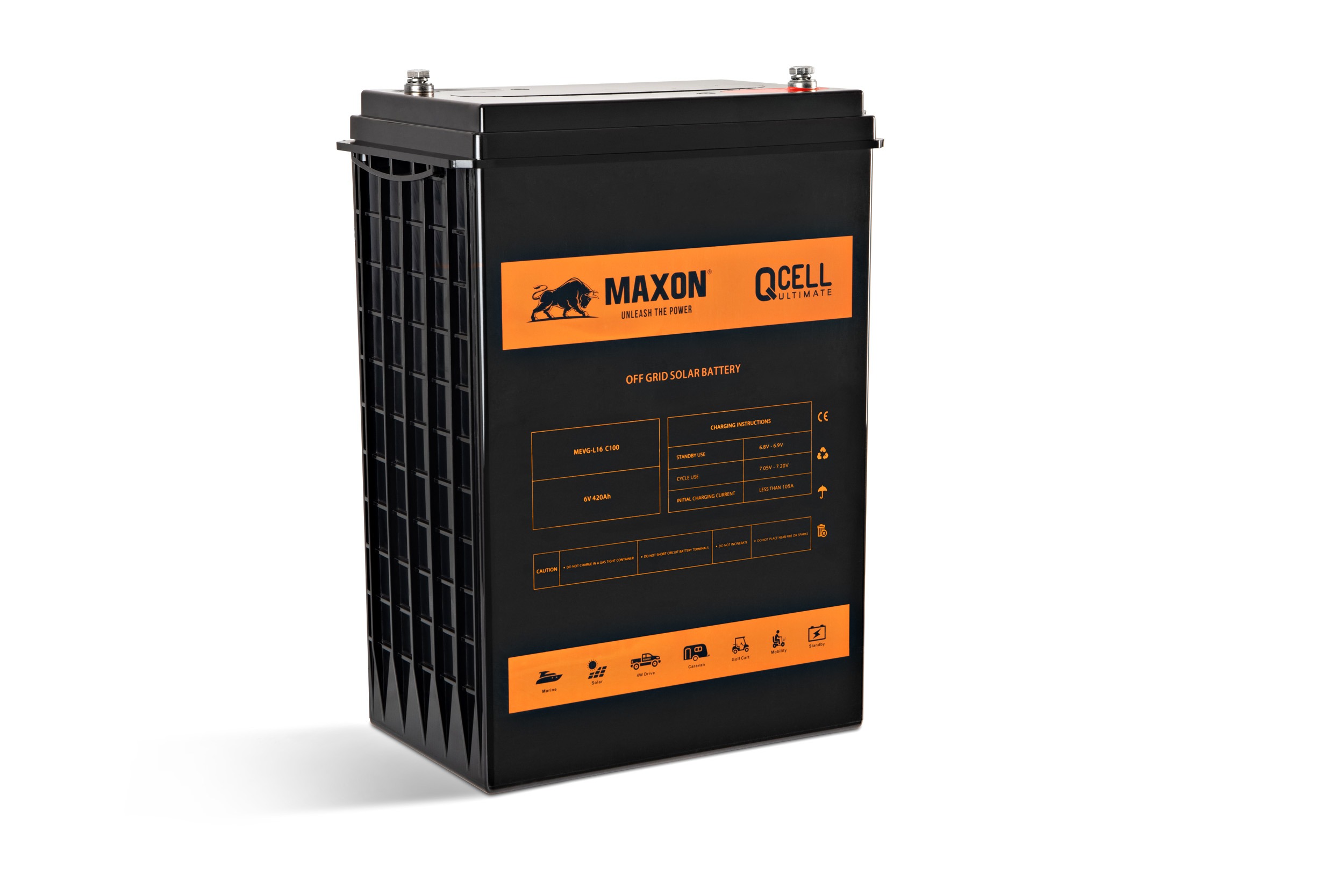

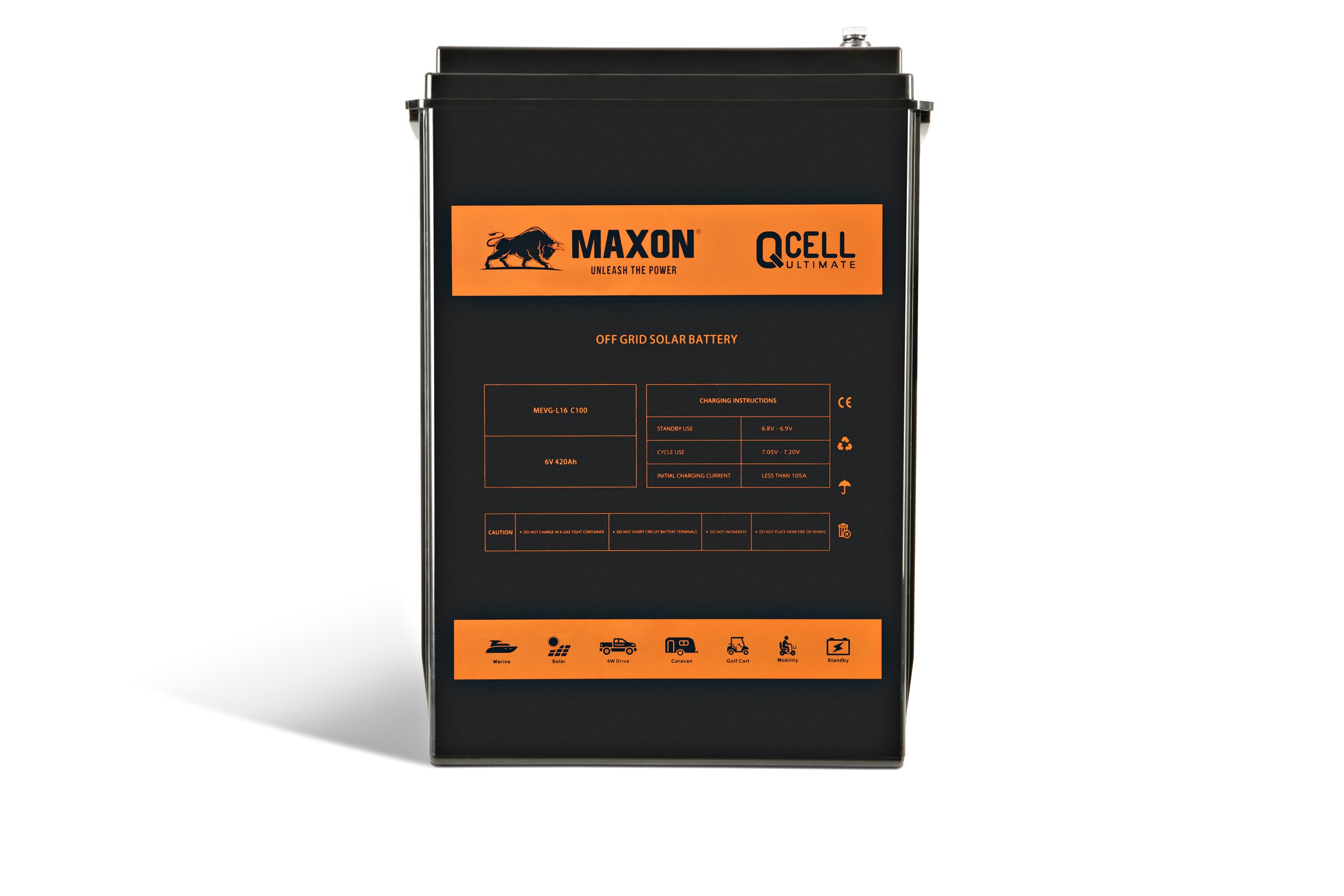

The latest Maxon’s QCELL Ultimate Carbon Gel series provides a superior cycle life to their AGM counterparts. The new robust thick plate design combined with the newest alloy carbon paste technology and the German-made Envonik Sio2 GEL is suited for many cycling applications.
The positive plate’s corrosion and the negative plates’ sulfation are the leading causes of failure in any lead-acid battery. We have introduced a thicker plate and added a special advanced carbon paste to reduce the sulfation to the negative plate with this in mind.
This new carbon gel technology design was originally to have a low maintenance battery that could handle a high draw when needed as in the mobility and golf carts application, contributing to the increase in cycle life. It quickly became apparent that it also benefited and ideally suited the small to medium off-grid solar setups.
FEATURES:
Vibration resistant design
Sealed and maintenance-free operation
Safety valve installation for explosion-proof
Latest Carbon Gel technology
Thick Plate design with advanced PVC separators
Low self-discharge characteristic
High cycle life
Green Energy, Maxon lead-acid batteries are recyclable
Warranty backed by local Australian owned and operated business
APPLICATIONS:
Off-Grid stand-alone systems
Marine
Floor sweepers
Forklifts
SPECIFICATIONS:
Brand: Maxon Batteries
Series: Q Cell Ultimate – Off-Grid Solar Batteries
Model: MEVG-L16
Type: Carbon Gel
Voltage: 6V
Capacity: 420Ah (C100)
Weight: 50.0 Kgs
Dimensions: L295 x W178 x H406 (mm)
| Model | Voltage | Ah (C100) | Terminal Type | Weight (Kg) | ||||||
| Length (mm) | Width (mm) | Height (mm) | Height TH (mm) | |||||||
| MEVG-105 | 6 | 235Ah | 260 | 180 | 246 | 252 | M8 | – | + | 30.5 |
| MEVG-J250 | 6 | 280Ah | 295 | 178 | 354 | 360 | M8 | – | + | 40.5 |
| MEVG-J305 | 6 | 330Ah | 295 | 178 | 354 | 360 | M8 | – | + | 44.0 |
| MEVG-L16 | 6 | 420Ah | 295 | 178 | 406 | 412 | M8 | – | + | 50.0 |
