Description

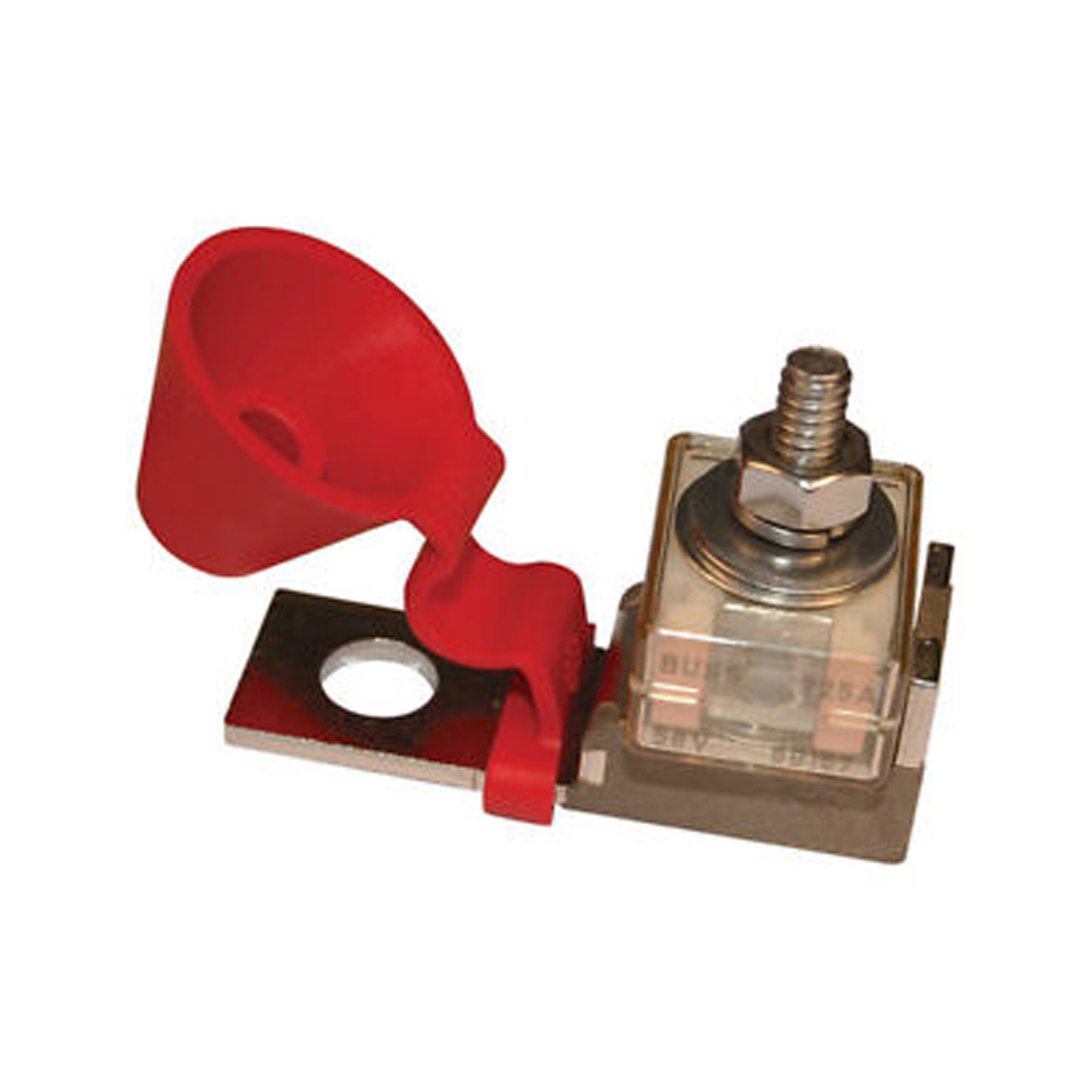

Terminal Fuse Block accepts 1 X 30A to 300A MRBF (Marine Rated Battery Fuse) fuse with a single Terminal Stud. Fuses are sold separately.
Features
- The new isolated stud design uses standard M8 (5/16″) hardware and permits the stacking of terminals
- Compact high-amp fuse—Appropriate for DC Main inverter windlass and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Weatherproof—Suitable for small open-cockpit boats and other harsh environments
- An insulating cap prevents accidental shorts
- Max voltage rating 58VDC
- Max current rating is 300A
- Meets SAEJ1171 external ignition protection requirements
Fuse not included.
