Description
Victron Orion-Tr Smart Dc to Dc Chargers
The Orion-Tr Smart DC-DC Charger is your professional solution for adaptive 3-stage charging with built-in Bluetooth technology. The charger is designed for dual battery systems in vehicles or on boats, leveraging the power of smart alternators and the start battery to efficiently charge the service battery. All with the convenience of Bluetooth, monitoring and programming.
Compatible with 12V and 24V systems with Lead Acid AGM, Gel and Lithium batteries, this charger is as versatile as it is powerful. Models up to 400W, its capability can be expanded infinitely by connecting multiple units in parallel, providing a solution that grows with your power demands. Engineered to withstand extreme environments, it delivers full-rated output up to 40°C and remains reliable up to 55°C.
The Orion Smart DC-DC Chargers excel as a power supply, stabilizing output voltage against varying loads or input voltages, ensuring your equipment receives consistent power. The three-stage charge algorithm extends battery life, making it ideal for vehicles with smart alternators or where voltage drops due to long cable runs. It protects your alternator in lithium systems by preventing overload with its controlled charging feature.
Installation and operation are thoughtfully simplified. The built-in engine shutdown detection feature allows the charger to operate only when the engine is running, preserving your vehicle’s onboard voltage. This smart functionality eliminates the need for complex installations, separate motor run sensors, or vehicle system modifications. Additionally, an optional forced allowed-to-charge setting provides further flexibility, integrating seamlessly with your vehicle’s ignition switch.
The convenience is achieved with the VictronConnect app on your smartphone, which allows complete programming of the Orion-Tr Smart DC-DC Charger. This connection not only puts control at your fingertips but also opens up a world of customization and monitoring, ensuring your charging process is as efficient.
Features
Bluetooth Smart enabled
Fully programmable
Adaptive 3-stage charge algorithm: bulk – absorption – float
Lithium batteries’ absorption time is fixed, with a default of 2 hours or can be recong figured if required.
Remote on-off
They are short circuit proof and can set up unlimited uits in paralleled to increase output current
High temperature protection
IP43 protection
Screw terminals
Why Choose Battery Central
1. Talk to Real People
2. Wide Availability
3. Competitive Prices
4. Price Match/Beat Assurance
5. Warranty Assurance
6. Convenient Delivery Options
7. Australia Wide Shipping
8. Hassle-Free returns
9. After Sales Service
10. Expert Guidance
Specifications
- Brand: Victron
- Model: Orion-Tr Smart 24/12-20A DC-DC Charger Isolated
- Part number: ORI241224120
- Input Voltage: 16 – 35V
- Nominal output voltage: 12.2V
- Output voltage adjust range: 10 – 15V
- Output current: 20A
- IP Rating: IP43
- Dimensions: L186 x W130 x H70
- Weight: 1.3Kg
- Warranty: 5 years
** Download the datasheet for complete specifications
** Download the manual for fitting instructions and cable and fuse sizing.
| Model | Type | Imput Voltage | Nominal Output Voltage | Output Voltage Adjust Range | Output Current | IP Rating | Dimensions (mm) | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | ||||||||
| Victron Orion-Tr Smart 12V to 12V DC-DC Chargers | ||||||||||
| Orion-Tr Smart 12/12-18A | Isolated DC-DC Charger | 8 - 17V | 12.2 | 10 - 15V | 18A | IP43 | 186 | 130 | 70 | 1.3Kg |
| Orion-Tr Smart 12/12-30A | Isolated DC-DC Charger | 10 - 17V | 12.2 | 10 - 15V | 30A | IP43 | 186 | 130 | 80 | 1.8Kg |
| Orion-Tr Smart 12/12-30A | Non-Isolated DC-DC Charger | 10 - 17V | 12.2 | 10 - 15V | 30A | IP43 | 186 | 130 | 80 | 1.8Kg |
| Victron Orion-Tr Smart 12V to 24V DC-DC Chargers | ||||||||||
| Orion-Tr Smart 12/24-10A | Isolated DC-DC Charger | 10 - 17V | 24.2 | 20 - 30V | 10A | IP43 | 186 | 130 | 70 | 1.3Kg |
| Orion-Tr Smart 12/24-15A | Isolated DC-DC Charger | 10 - 17V | 24.2 | 20 - 30V | 15A | IP43 | 186 | 130 | 80 | 1.8Kg |
| Orion-Tr Smart 12/24-15A | Non-Isolated DC-DC Charger | 10 - 17V | 24.2 | 20 - 30V | 15A | IP43 | 186 | 130 | 80 | 1.8Kg |
| Victron Orion-Tr Smart 24V to 12V DC-DC Chargers | ||||||||||
| Orion-Tr Smart 24/12-20A | Isolated DC-DC Charger | 16 - 35V | 12.2 | 10 - 15V | 20A | IP43 | 186 | 130 | 70 | 1.3Kg |
| Orion-Tr Smart 24/12-30A | Isolated DC-DC Charger | 20 - 35V | 12.2 | 10 - 15V | 30A | IP43 | 186 | 130 | 80 | 1.8Kg |
| Orion-Tr Smart 24/12-30A | Non-Isolated DC-DC Charger | 20 - 35V | 12.2 | 10 - 15V | 30A | IP43 | 186 | 130 | 80 | 1.8Kg |
| Victron Orion-Tr Smart 24V to 24V DC-DC Chargers | ||||||||||
| Orion-Tr Smart 24/24-12A | Isolated DC-DC Charger | 16 - 35V | 24.2 | 20 - 30V | 12A | IP43 | 186 | 130 | 70 | 1.3Kg |

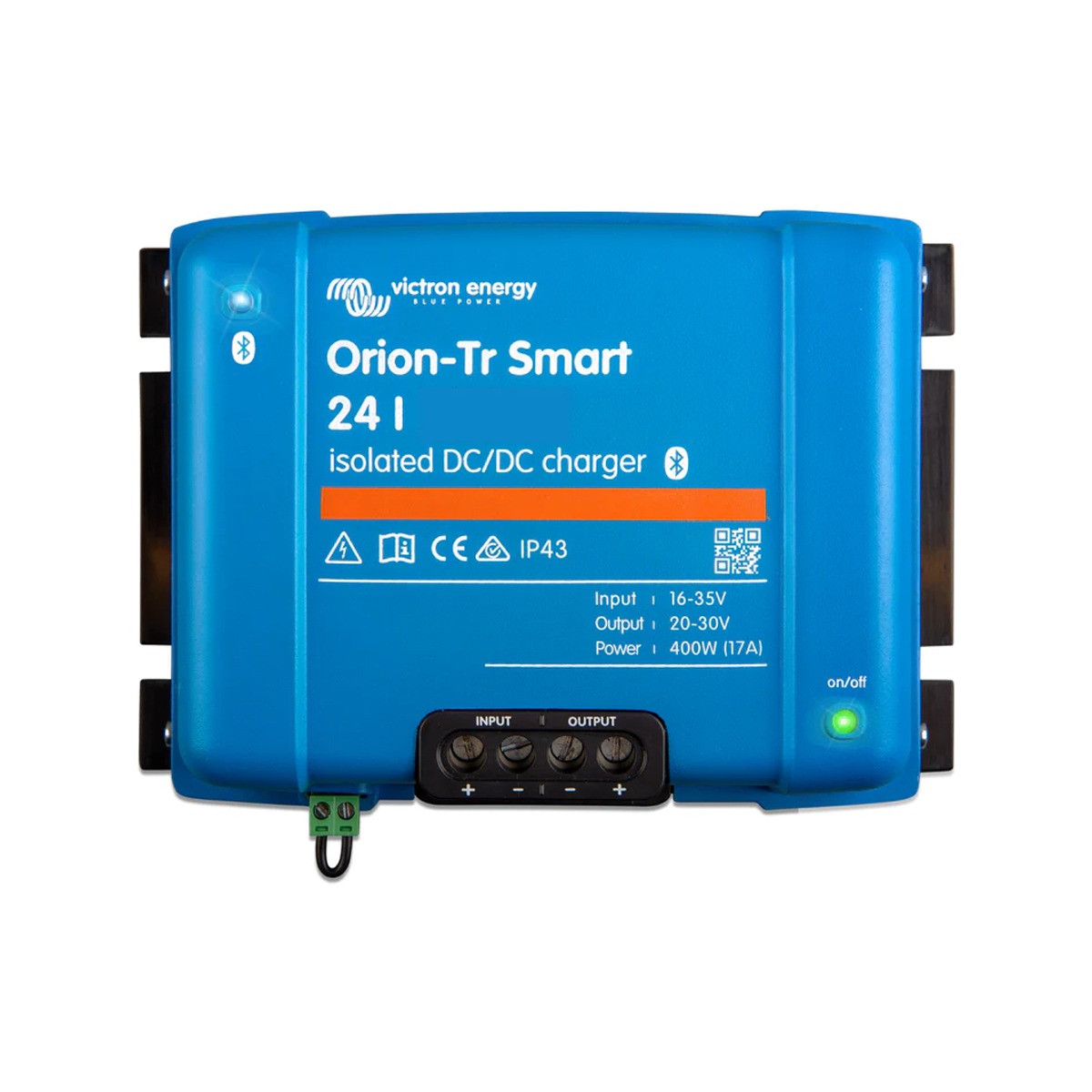

| Orion-Tr Smart 24/24-17A | Isolated DC-DC Charger | 20 - 35V | 24.2 | 20 - 30V | 17A | IP43 | 186 | 130 | 80 | 1.6Kg |
| Orion-Tr Smart 24/24-17A | Non-Isolated DC-DC Charger | 20 - 35V | 24.2 | 20 - 30V | 17A | IP43 | 186 | 130 | 80 | 1.6Kg |
