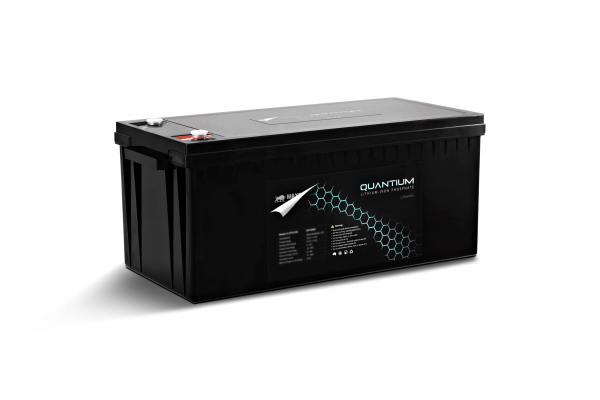

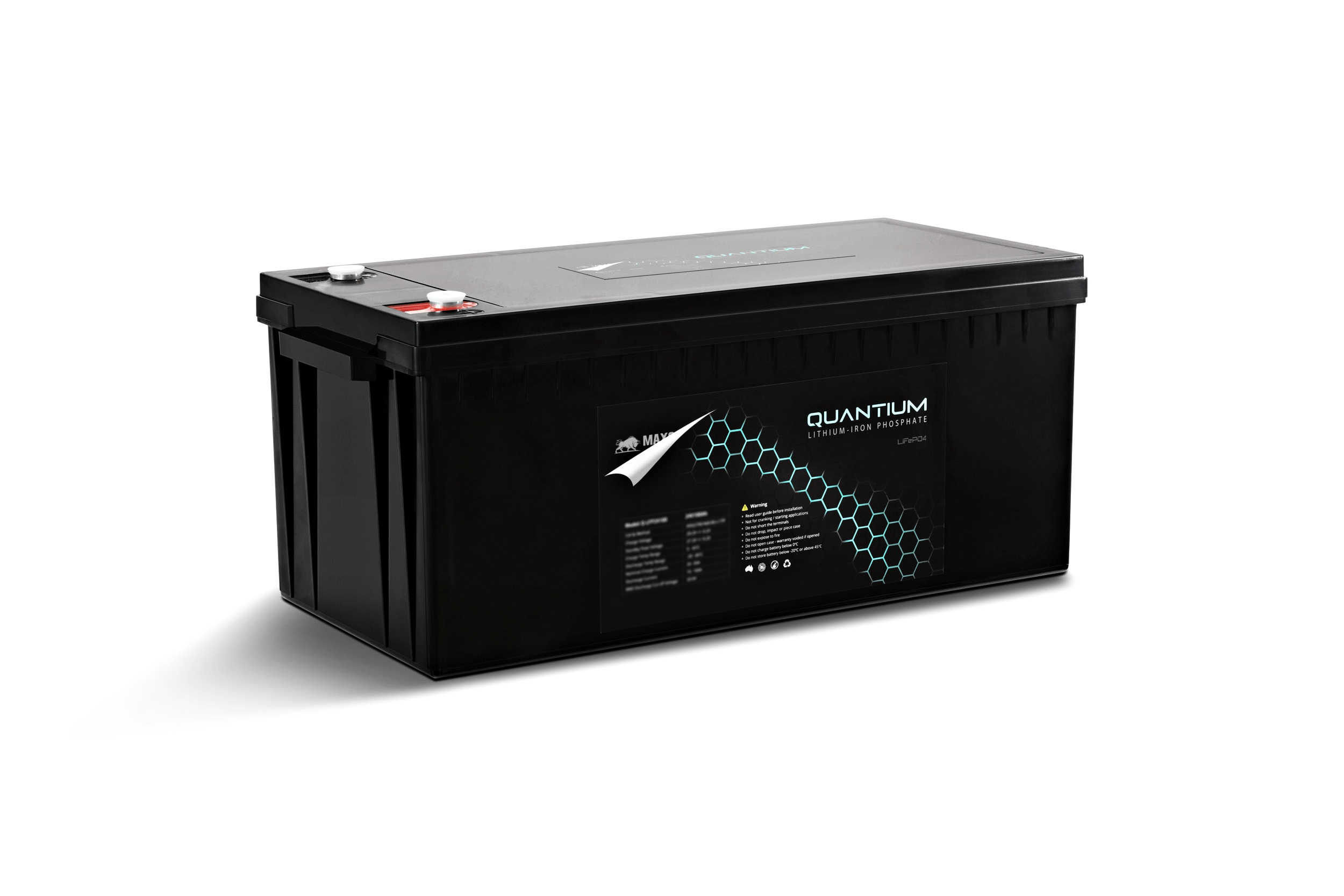

Quantium™ Lithium Iron Phosphate (LiFePO4) Battery 25.6V 100Ah
Quantium™ Deep Cycle Lithium Iron Phosphate (LiFeP04) batteries are safe, high-quality, energy-efficient, slimline designed to replace traditional Lead Acid, AGM, and GEL batteries. They feature an integrated quality smart battery management system (BMS) to ensure the safe operation and protection of the battery by monitoring and managing the charging and discharging process.
These slimline LiFePo4 batteries are designed to save space when replacing lead-acid batteries for Caravans, Motorhomes, Campers, 4×4, Water Craft, and Trolling motors and are perfect for storing solar energy.
Many of the cheap lithiums flooding the market today use low-quality cells, which results in not only poor performance but, worst of all, poor safety. Quantium™ batteries are made with the best materials by reputable manufacturers; this shows in the quality of their construction and high continuous power output.
Quantium™ LiFePo4 12.8V 100Ah Deep Cycle Lithium Iron Phosphate batteries come with a genuine three-year replacement warranty by Maxon Batteries, an Australian family-owned business, which this also backed locally by Battery Central Brisbane.
Unlike some online stores that pop up only to shut down when you need them and reopen under a different name.
FEATURES
High cycle life 5000 @ 50% DOD
More economical than AGM / Gel batteries
Quality Prismatic Cells
Safest lithium chemistry with high energy
In built-in over-charge and over-discharge protection
Internal cell balancing
Can be connected in series to 51.2V
Can be connected in parallel to up to 4 batteries
Lightweight
36-month warranty back by local Australian-owned and operated business
SPECIFICATIONS
Model: Q-LBS24100
Usage: Deep Cycle
Type: LifePO4 Prismatic Cells
Nominal Voltage: 25.6V
Capacity (Usable): 100Ah @ O.2C
Energy: 2560Wh
Cycle Life: 2,000 cycles @ 100% DOD
Cycle Life: 5,000 cycles @ 50% DOD
Self-Discharge: >3% Per Month 25ºC
Charge Voltage: 14.6V +/- 0.2V
Standby / Float Voltage: 13.6V +/- 0.2V
Charge Mode: CC/CV Constant Current/Constant Voltage
Max Charge Current: 75A
Max Continuous Discharge Current: 150A
Max Pulse Discharge Current: 200S (<3sec)
BMS Discharge Cut off Voltage: 10.0V
Charge Temp Range: 0 – 45ºC
Discharge Temp Range: -20ºC – 60ºC
Storage Temp Range: -20ºC – 45ºC
Cell & Method: Prismatic 4S 2P
Casing: ABS
CE Certified
UN38.3 Certified
RoHS Certified
UL Certified
ISO 9001 Certified
ISO 1200 Certified
Dimensions L525xW240xH220 TH245 mm
Product Weight: kg
Terminal: M8
Warranty Private: 36 Months
Warranty Commerical: 24 Months
Warranty backed by local Australian-owned and operated business
Deep Cycle only, not to be used for cranking or under the bonnet
