Description

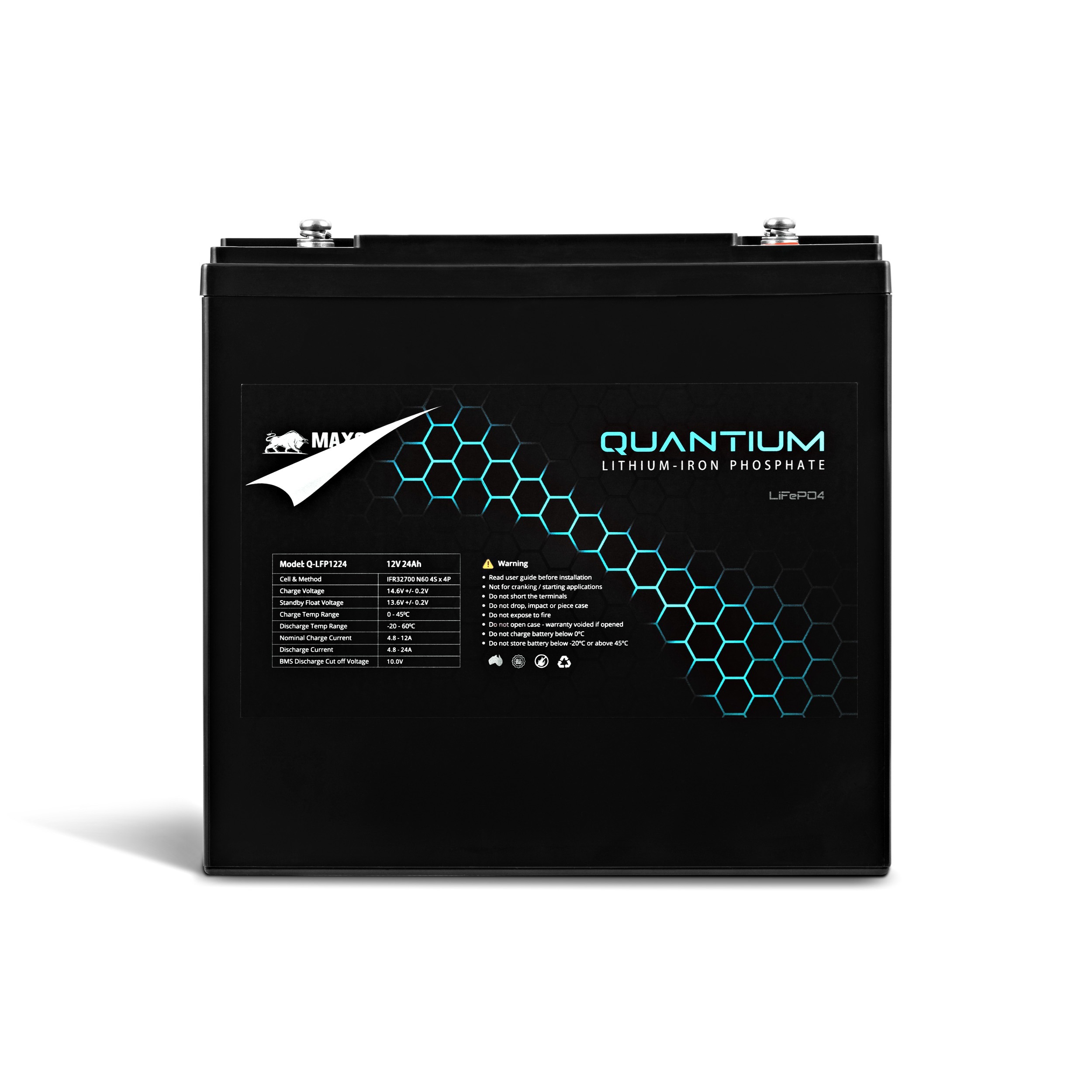

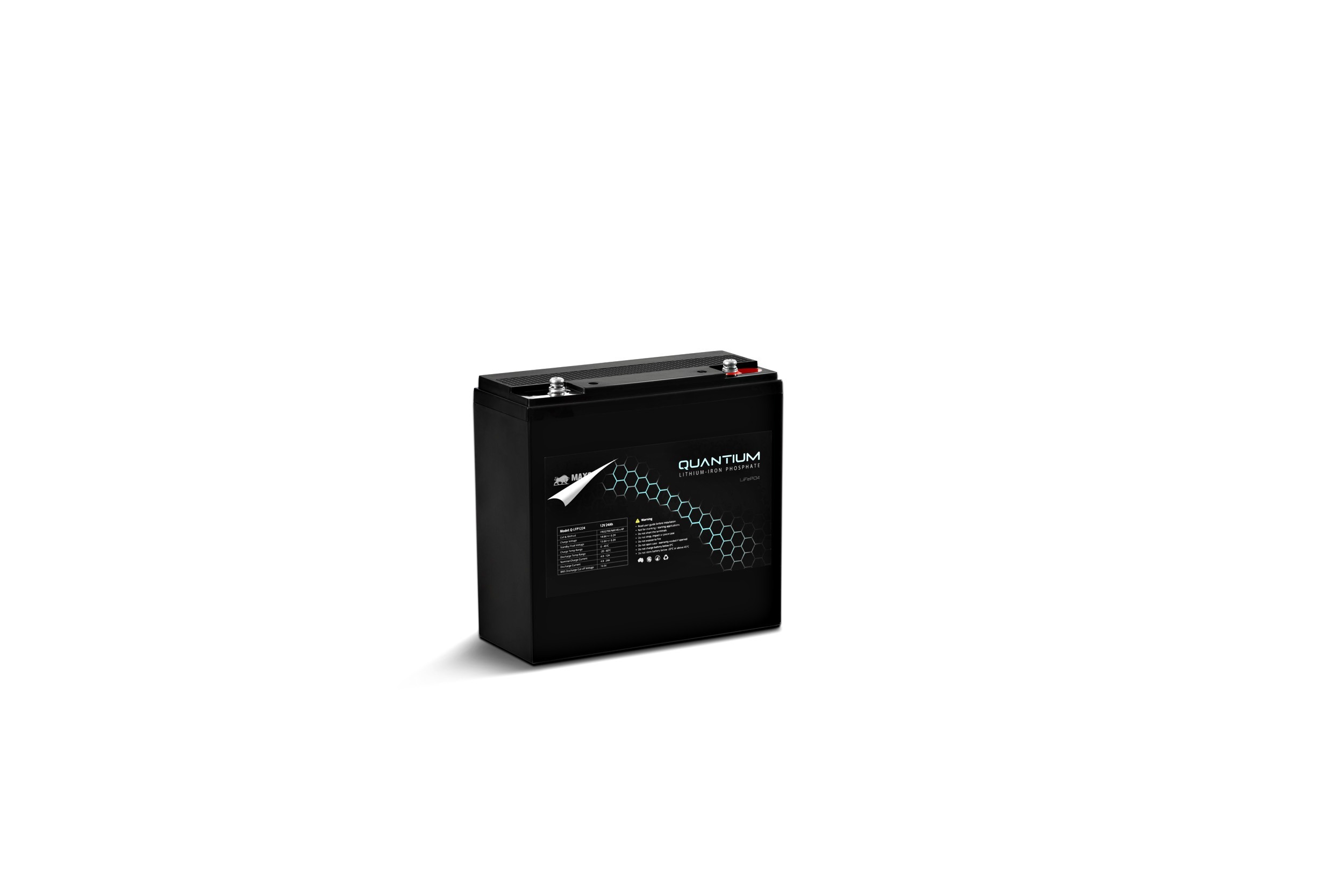

Quantium™ Lithium Iron Phosphate (LiFePO4) Battery 12.8V 24Ah
Quantium™ Deep Cycle Lithium Iron Phosphate (LiFeP04) batteries are a safe, high-quality, energy-efficient, lightweight drop-in replacement for traditional Lead Acid, AGM, GEL batteries. They are featuring an integrated quality smart battery management system (BMS) to ensuring the safe operation and protection of the battery by monitoring and managing the charging and discharging process.
These LiFePo4 batteries are designed to replace lead-acid batteries for Caravans, Motorhomes, Campers, 4×4, Water Craft, Trolling motors and are perfect for storing solar energy.
Many of the cheap lithiums flooding the market today that use low-quality cells, which results in not only poor performance but worst of all poor safety. Quantium™ batteries are made with the best materials by reputable manufacture; this shows in the quality of their construction and high continuous power output.
Quantium™ LiFePo4 12.8V 24Ah Deep Cycle Lithium Iron Phosphate batteries come with a genuine two-year replacement warranty by Maxon Batteries, an Australian family-owned business, this also backed locally by Battery Central Brisbane.
Unlike some online stores that pop up only to shut down when you need them and reopen under a different name.
FEATURES
High cycle life 5000 @ 50% DOD
More economical than AGM / Gel batteries
Safest lithium chemistry with high energy
In built-in over-charge and over-discharge protection
Internal cell balancing
Can be connected in series to 51.2V
Can be connected in parallel up to 4 batteries
Drop-in replacement for lead-acid batteries
Lightweight
24-month warranty back by local Australian owned and operated business
SPECIFICATIONS
Model: Q-LFP1224
Usage: Deep Cycle
Type: LifePO4
Nominal Voltage: 12.8V
Capacity (Usable): 24Ah @ O.2C
Energy: 307.2Wh
Cycle Life: 2,000 cycles @ 100% DOD
Cycle Life: 5,000 cycles @ 50% DOD
Self-Discharge: >3% Per Month 25ºC
Charge Voltage: 14.6V +/- 0.2V
Standby / Float Voltage: 13.6V +/- 0.2V
Charge Mode: CC/CV Constant Current/Constant Voltage
Continuous Charge: 4.8A
Max Charge Current: 12.0A
Discharge Current: 4.8A
Max Continuous Current: 24.0A
Max Pulse Discharge Current: 60A (<3sec)
BMS Discharge Cut off Voltage: 10.0V
Charge Temp Range: 0 – 45 Deg C
Discharge Temp Range: -20 – 60 Deg C
Storage Temp Range: 0 – 45 Deg C
IP Protection Level: IP55
Cell & Method: Cylindrical IFR32700 N60 4S 4P
Casing: ABS
CE Certified
UN38.3 Certified
RoHS Certified
UL Certified
ISO 9001 Certified
ISO 1200 Certified
Dimensions LxWxH: 181 x 77 x 167mm (Inc TH)
Product Weight: 2.9kgs
Terminal: M5
Warranty: 24 Months
Warranty backed by local Australian owned and operated business
Deep Cycle only, not to be used for cranking or under the bonnet.
