Victron SmartSolar MPPT
Victron’s advanced MPPT (Maximum Power Point Tracking) solar controllers are designed to cater to various solar system configurations. The BlueSolar and SmartSolar MPPT range offers superior performance, ensuring you get the most out of your solar panels.
Monitoring and managing your system has never been easier using the SmartSolar MPPT. You have the convenience of using the VictronConnect app, which allows you to monitor and manage your system, allowing for remote adjustments and insights at your fingertips.
Adding a VE Direct Bluetooth Smart dongle, the VictronConnect app can be accessed with an existing BlueSolar MPPT.
The adaptive battery management system extends your battery life, enhancing the reliability and sustainability of your solar investment.
No two solar systems are alike, and Victron offers an expansive selection of MPPT solar controllers. Whether you’re powering a compact 12V or 24V setup with economical “house” or “12V panels,” or you need robust solutions for 12V, 24V, 36V, or 48V systems, Victron’s lineup ensures there’s an ideal match for every requirement.
For smaller or budget-conscious installations, our 75/10 and 75/15 MPPT controllers are perfect for 12V and 24V systems, efficiently managing up to three “12-volt” panels in series. Need more power? The 100/20, 100/30, and 100/50 models accommodate larger or more demanding systems up to 48V, with our 150V MPPT controller offering exceptional flexibility and performance for high-capacity setups.
Features
Advanced MPPT Technology
Up to 98% Conversion Efficiency
Versatile Battery Compatibility
Adaptive Battery Management
Easy Monitoring with Built-in Bluetooth
Protection Features
Scalable Solutions
Why Choose Battery Central
1. Talk to Real People
2. Wide Availability
3. Competitive Prices
4. Price Match/Beat Assurance
5. Warranty Assurance
6. Convenient Delivery Options
7. Free Australia Wide Shipping
8. Hassle-Free returns
9. After Sales Service
10. Expert Guidance
Specifications
- Brand: Victron Energy

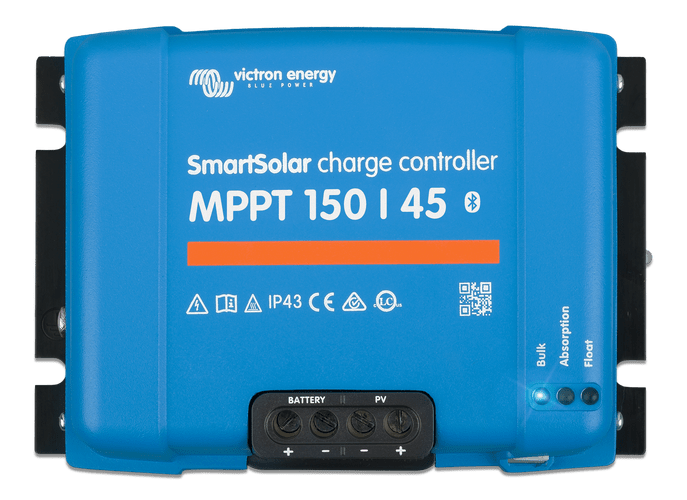

- Model: SmartSolar MPPT 150/45
- Battery voltage: 12/24/36/48V
- Charge current: 45A
- Nominal PV power:
- – 12V: 650W
- – 24V: 1300W
- – 36V: 1950W
- – 48V: 2600W
- IP rating IP43
- Max. PV open circuit voltage: 150V
- Dimensions: L186 x W130 x H80 mm
- Weight: 1.25 Kg
- Warranty: 5 years
*Specification subject to change without notice.
**Download Datasheet for complete specifications.
Model | Battery Voltage | Rated Charge Current | Nominal PV Power | Max Open Circuit Voltage | IP Rating | Dimensions (mm) | Weight | DC Connection | Private Warranty | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12 Volt | 24 Volt | 36 Volt | 48 Volt | Length | Width | Height | ||||||||
Victron SmartSolar MPPT 75/10 75/15 100/15 100/20 (Bluetooth) | ||||||||||||||
Victron SmartSolar MPPT 75/10 SCC075010060R | 12/24V | 10A | 145W | 290W | n/a | n/a | 75V | IP43 | 113 | 100 | 40 | 0.5Kg | 6 mm² / AWG10 | 5 Years |
Victron SmartSolar MPPT 75/15 SCC075015060R | 12/24V | 15A | 220W | 440W | n/a | n/a | 75V | IP43 | 113 | 100 | 40 | 0.5Kg | 6 mm² / AWG10 | 5 Years |
Victron SmartSolar MPPT 100/15 SCC110015060R | 12/24V | 15A | 220W | 440W | n/a | n/a | 100V | IP43 | 113 | 100 | 50 | 0.6Kg | 6 mm² / AWG10 | 5 Years |
Victron SmartSolar MPPT 100/20 48V SCC110020160R | 12/24/48V | 20A | 290W | 580W | n/a | 1160W | 100V | IP43 | 113 | 100 | 60 | 0.7Kg | 6 mm² / AWG10 | 5 Years |
Victron SmartSolar MPPT 100/30 100/50 (Bluetooth) | ||||||||||||||
Victron SmartSolar MPPT 100/30 | 12/24V | 30A | 440W | 880W | n/a | n/a | 100V | IP43 | 186 | 130 | 70 | 1.3Kg | 16 mm² / AWG6 | 5 Years |
Victron SmartSolar MPPT 100/50 | 12/24V | 50A | 700W | 1400W | n/a | n/a | 100V | IP43 | 186 | 130 | 70 | 1.3Kg | 16 mm² / AWG6 | 5 Years |
Victron SmartSolar MPPT 150/35 150/45 (Bluetooth) | ||||||||||||||
Victron SmartSolar MPPT 150/35 SCC115035210 | 12/24/36/48V | 35A | 500W | 1000W | 1500W | 2000W | 150V | IP43 | 186 | 130 | 70 | 1.25Kg | 16 mm² / AWG6 | 5 Years |
Victron SmartSolar MPPT 150/45 SCC115045212 | 12/24/36/48V | 45A | 650W | 1300W | 1950W | 2600W | 150V | IP43 | 186 | 130 | 80 | 1.25Kg | 16 mm² / AWG6 | 5 Years |
Victron SmartSolar MPPT 150/45 Tr SCC115045211 | 12/24/36/48V | 45A | 650W | 1300W | 1950W | 2600W | 150V | IP43 | 186 | 130 | 80 | 1.25Kg | 16 mm² / AWG6 | 5 Years |
SmartSolar MPPT 150/60 up to 250/70 (Bluetooth) | ||||||||||||||
SmartSolar MPPT 150/60-Tr SCC115060211 | 12/24/36/48V | 60A | 860W | 1720W | 2580W | 3440W | 150V | IP43 | 250 | 185 | 95 | 3.0Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 150/60-MC4 SCC115060311 | 12/24/36/48V | 60A | 860W | 1720W | 2580W | 3440W | 150V | IP43 | 250 | 215 | 95 | 3.0Kg | Two Pairs MC4 | 5 Years |
SmartSolar MPPT 150/70-Tr SCC115070211 | 12/24/36/48V | 70A | 1000W | 2000W | 3000W | 4000W | 150V | IP44 | 250 | 185 | 95 | 3.0Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 250/60-Tr SCC125060221 | 12/24/36/48V | 60A | 860W | 1720W | 2580W | 3440W | 250V | IP43 | 250 | 185 | 95 | 3.0Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 250/60-MC4 SCC125060321 | 12/24/36/48V | 60A | 860W | 1720W | 2580W | 3440W | 250V | IP43 | 250 | 215 | 95 | 3.0Kg | Two Pairs MC4 | 5 Years |
SmartSolar MPPT 250/70-Tr SCC125070221 | 12/24/36/48V | 70A | 1000W | 2000W | 3000W | 4000W | 250V | IP43 | 250 | 185 | 95 | 3.0Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 150/70 up to 250/100 VE.Can | ||||||||||||||
SmartSolar MPPT 150/70-Tr VE. Can SCC115070411 | 12/24/36/48V | 70A | 1000W | 2000W | 3000W | 4000W | 150V | IP43 | 250 | 185 | 95 | 3.0Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 150/70-MC4 Can SCC115070511 | 12/24/36/48V | 70A | 1000W | 2000W | 3000W | 4000W | 150V | IP43 | 250 | 215 | 95 | 3.0Kg | Two Pairs MC4 | 5 Years |
SmartSolar MPPT 150/85-Tr Can SCC115085411 | 12/24/36/48V | 85A | 1200W | 2400W | 3600W | 4900W | 150V | IP43 | 295 | 216 | 103 | 4.5Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 150/85-MC4 Can SCC115085511 | 12/24/36/48V | 85A | 1200W | 2400W | 3600W | 4900W | 150V | IP43 | 295 | 246 | 103 | 4.5Kg | Three Pairs MC4 | 5 Years |
SmartSolar MPPT 150/100-Tr Can SCC125110412 | 12/24/36/48V | 100A | 1450W | 2900W | 4350W | 5800W | 150V | IP43 | 295 | 216 | 103 | 4.5Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 150/100-MC4 Can SCC125110512 | 12/24/36/48V | 100A | 1450W | 2900W | 4350W | 5800W | 150V | IP43 | 295 | 246 | 103 | 4.5Kg | Three Pairs MC4 | 5 Years |
SmartSolar MPPT 250/70-Tr VE. Can SCC125070421 | 12/24/36/48V | 70A | 1000W | 2000W | 3000W | 4000W | 250V | IP43 | 250 | 185 | 95 | 3.0Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 250/70-MC4 Can SCC125070521 | 12/24/36/48V | 70A | 1000W | 2000W | 3000W | 4000W | 250V | IP43 | 250 | 215 | 95 | 3.0Kg | Two pairs MC4 | 5 Years |
SmartSolar MPPT 250/85-Tr Can SCC125085411 | 12/24/36/48V | 85A | 1200W | 2400W | 3600W | 4900W | 250V | IP43 | 295 | 216 | 103 | 4.5Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 250/85-MC4 Can SCC125085511 | 12/24/36/48V | 85A | 1200W | 2400W | 3600W | 4900W | 250V | IP43 | 295 | 246 | 103 | 4.5Kg | Three Pairs MC4 | 5 Years |
SmartSolar MPPT 250/100-Tr Can SCC125110412 | 12/24/36/48V | 100A | 1450W | 2900W | 4350W | 5800W | 250V | IP43 | 295 | 216 | 103 | 4.5Kg | 35 mm² / AWG2 | 5 Years |
SmartSolar MPPT 250/100-MC4 Can SCC125110512 | 12/24/36/48V | 100A | 1450W | 2900W | 4350W | 5800W | 250V | IP43 | 295 | 246 | 103 | 4.5Kg | Three Pairs MC4 | 5 Years |
