Description

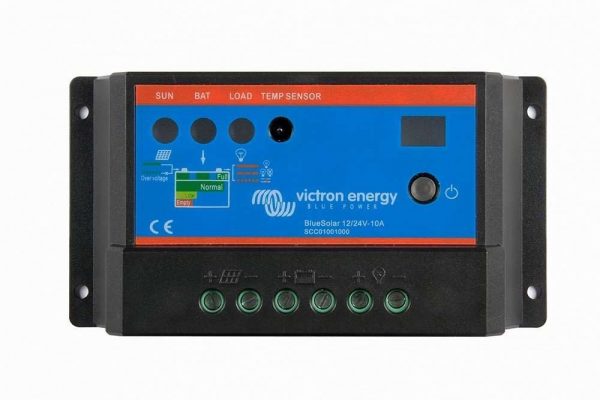

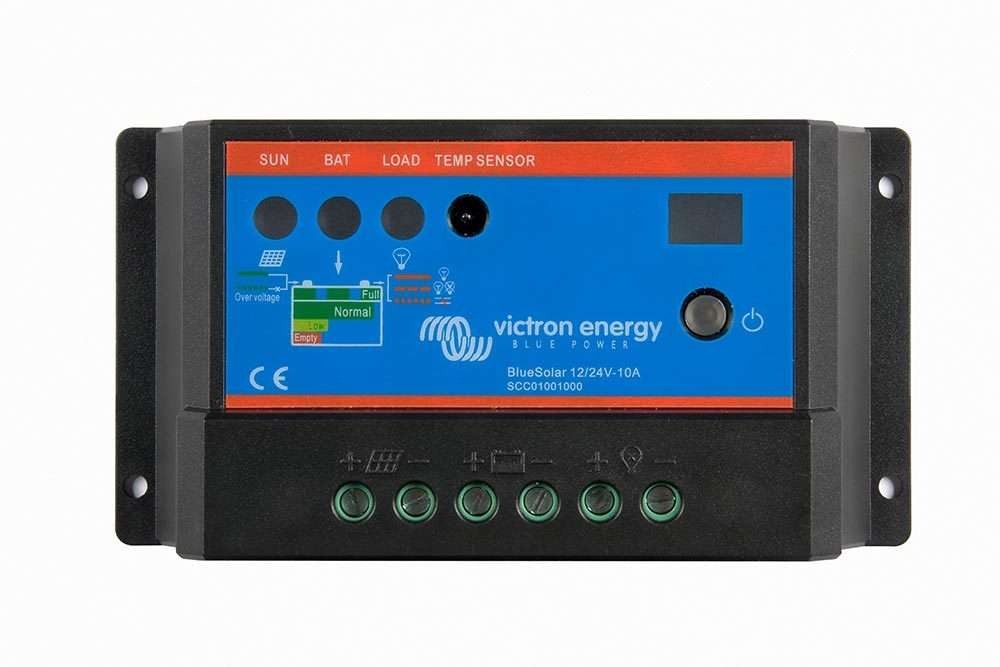

Victron BlueSolar PWM
For solar panel applications, particularly when connecting one or more panels in parallel with a voltage that aligns closely with the battery’s absorption charge voltage, Victron PWM (Pulse Width Modulation) Controllers are the go-to solution. Ideal for smaller 12V battery setups commonly referred to as “12V panels,” these controllers are designed to maximize efficiency and prolong battery life.
It’s important to match your controller with your setup. While PWM Controllers are perfect for parallel-connected panels with similar voltage levels to the battery, scenarios involving a mismatch in voltage (e.g., a 12V battery setup with a 24V panel) call for the efficiency of MPPT-style controllers. Understanding this distinction ensures you choose the right controller for your energy needs.
Whether powering a remote cabin, kitting out your RV, or setting sail, Victron PWM Controllers offer reliability and efficiency for your small-scale solar projects.
Features
Low Battery Voltage Disconnect Function
This essential feature prevents battery over-discharge, safeguarding your batteries from potential damage during extended periods of low voltage.
Day/Night Timing
Customize your system’s behaviour with programmable day/night timing. Set specific times for the load output to turn on/off, optimizing energy usage based on your preferences and needs.
Three-Stage Battery Charging
The Victron Bluesolar light PWM solar controller offers three stages of battery charging: Bulk, Absorption, and Float (not programmable).
Load Output Protection
Rest assured that your controller is well-protected against overload and short circuits, ensuring safe and uninterrupted operation.
Reverse Polarity Protection
The controller features built-in protection against such instances, providing peace of mind.
Why Choose Battery Central
At Battery Central, we pride ourselves on offering our valued customers only the highest quality products. Our commitment to excellence extends beyond just products; it includes exceptional customer service and expert advice. When you shop with us, you can expect the following:
1. Talk to Real People
Our knowledgeable staff offers free advice to help you find the correct product.
2. Wide Availability
Battery Central carries diverse bands and models to fit all budgets.
3. Competitive Prices
Enjoy competitive pricing with the convenience of a locally Australian-owned and operated brick-and-mortar shop.
4. Price Match/Beat Assurance
Battery Central aims to match and, where possible, beat any advertised price for the same brand and model from other reputable competitors in Australia.
5. Warranty Assurance
Rest easy knowing that our Victron Energy products have a comprehensive warranty, protecting your investment.
6. Convenient Delivery Options
Benefit from free local and Australia-wide delivery of the Victron PWM Controllers or instore pick at Brisbane and Ipswich locations.
7. Australia Wide Shipping
Australia-wide shipping is available for your convenience.
8. Hassle-Free returns
Our easy No Quibble 30-day Return policy ensures satisfaction for unopened and undamaged products.
9. After Sales Service
Count on ongoing advice and technical support even beyond the sale.
10. Expert Guidance
Trust Battery Central to help you choose the correct product for your specific application.
Specifications
- Brand: Victron Energy
- Model: BlueSolar PWM
- Battery voltage: 12/24V
- Charge current: 20A
- IP rating IP20
- Max. PV open circuit voltage: 28V / 55V
- Charger Profiles: AGM, gel & flooded
- Dimensions: L133 x W70 x H34 mm
- Weight: 0.2 Kg
- Warranty: 5 years
*Specification subject to change without notice.
| Model | Battery Voltage | Rated Charge Current | Nominal PV Power | Max Open Circuit Voltage | IP Rating | Dimensions (mm) | Weight | DC Connection | Private Warranty | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 Volt | 24 Volt | 36 Volt | 48 Volt | Length | Width | Depth | ||||||||
| BlueSolar PWM LCD & USB Charge Controller | ||||||||||||||
| Victron BlueSolar PWM LCD & USB 12/24V - 5A SCC010005050 | 12/24V | 5A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 169 | 96 | 36 | 0.2Kg | 6 mm² / AWG10 | 5 Years |
| Victron BlueSolar PWM LCD & USB 12/24V - 10A SCC010010050 | 12/24V | 10A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 169 | 96 | 36 | 0.2Kg | 6 mm² / AWG10 | 5 Years |
| Victron BlueSolar PWM LCD & USB 12/24V - 20A SCC010020050 | 12/24V | 20A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 169 | 96 | 36 | 0.2Kg | 6 mm² / AWG10 | 5 Years |
| Victron BlueSolar PWM LCD & USB 12/24V - 30A SCC010030050 | 12/24V | 30A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 184 | 101 | 47 | 0.2Kg | 16 mm² / AWG6 | 5 Years |
| BlueSolar PWM Light Charge Controller | ||||||||||||||
| Victron BlueSolar PWM-Light Charge Controller 12/24V-5A SCC010005000 | 12/24V | 5A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 133 | 70 | 34 | 0.2Kg | 5 mm² / AWG10 | 5 Years |
| Victron BlueSolar PWM-Light Charge Controller 12/24V-10A SCC010010000 | 12/24V | 10A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 133 | 70 | 34 | 0.2Kg | 5 mm² / AWG10 | 5 Years |
| Victron BlueSolar PWM-Light Charge Controller 12/24V-20A SCC010020020 | 12/24V | 20A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 133 | 70 | 34 | 0.2Kg | 5 mm² / AWG10 | 5 Years |
| Victron BlueSolar PWM-Light Charge Controller 12/24V-30A SCC010030020 | 12/24V | 30A | n/a | n/a | n/a | n/a | 28V / 55V | IP20 | 133 | 70 | 34 | 0.2Kg | 5 mm² / AWG10 | 5 Years |
